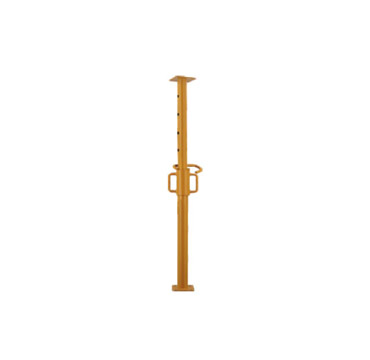

Prop Pipe Support
- Base Plate (120 x 120 x 5 mm)
- Inner Tube (48.6 x 2.1 mm)
- Threaded Part & Nut
- Outer Tube (60.5 x 2.1 mm)
| Standard Type I Prop Pipe Support | |
| Maximum Height | 3,900 mm |
| Minimum Height | 2,400 mm |
| Inner Tube | OD 48.6 mmx WT 2.1 mm |
| Outer Tube | OD 60.5 mmx WT 2.1 mm |
| Screw | 60-50 x 3.3 mm |
| Adjustable Collar | FCD 40 mm |
| Pin Adjustment | 125 mm |
| Handle Adjustment | 125 mm |
| No of Hole of Adjust | 12 Holes |
| Distance between Hole to Hole | 120mm |
| Color | Orange |
| Cover Type Top & Base Plate | 120 x 120 x 5 (TH) mm |
| Safe Working Load | 1500 Kgs. |
| Total Weight of Prop | 12.5 Kgs. |
