| Multitude of Uses | |
| Falsework support | Formwork for reinforced concrete floors & deams. |
| Ranking Shores | To brace formwork for columns, walls & stairs. |
| Temporary Support | For repair work, canopies, lintels & the like. |
| Simple & innovative construction | |
| Prop consists of | Inner-tube with welded top-plate. Outer-tube with selded base-plate. Nut & Handle. Chainless prop pin. |
| Available in 5 sizes | Covering a range from 1050mm to 4900mm with axial compression working load limits ranging from 7kN to 42.5kN. (1kN= 20kg) |
| Spare parts are available | For all components & sizes. |
| Code | IEF-101 |

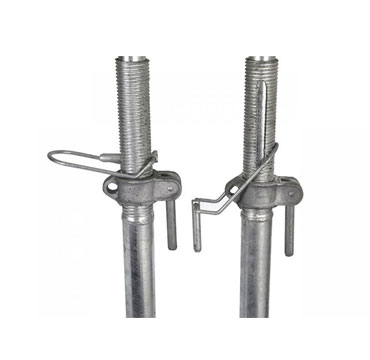

| Chain Less Prop Pin | |
| High tensile pin | with solid steel loop. |
| No tangled | or lost chains. |
| Reduces loss of | pins on the job. |
| Code | IEF-102 |

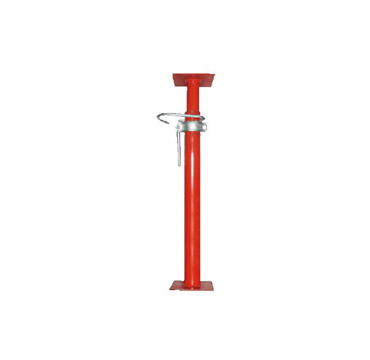

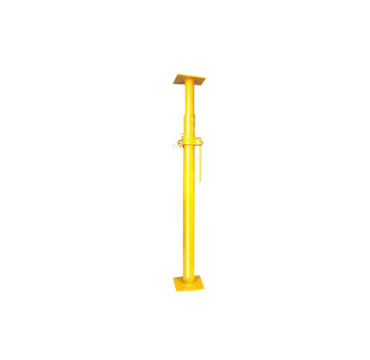

| Adjustable Prop | |
| Outer Pipe | 60.3 mm x 2.1 mm |
| Inner Pipe | 48.3 mm x 2.1 mm |
| Weight | 1.12 kg |
| Code | IEF-115 |
